XLPE Cables

Cross Linked Polyethene Cables (HT-XLPE Cales)
HT XLPE cables, not in our product range, below data for technical information only.

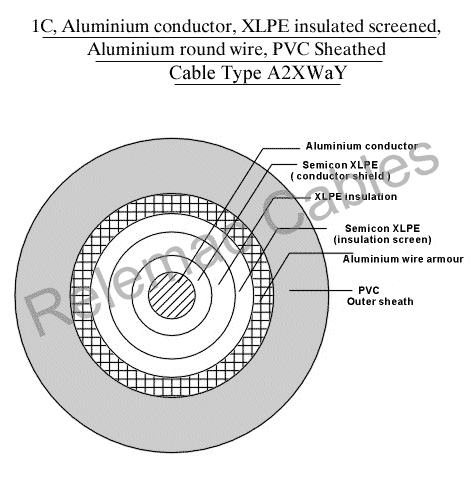

XLPE Cables >> Single Core Copper/Aluminium Conductor XLPE Insulated PVC Sheathed Cables Round Wire Armoured A2XWaY

Product Type >> screened

KV Range >> 12.7 / 22 kV

3.3 KV     l     3.8/6.6 kV    l     6.36/11 kV    l     11/11 kV    l     19/33 kV

Conductor Nominal Thickness of Ins. Nominal Dia. Of Al. Wire Ar. Nominal Dia. Of O/Sh. Approx. Overall Dia. Of Cable Approx. Weight of Cable Approx. Shipping Wt. Of Cable (for Std. Drum length) Max.D.C. Resistance at 20 deg. C Approx. A.C. Resistance at 90 deg C Approx. Reactance at 50Hz. Approx. Capacitance per phase Continuous Current Rating Short Circuit Rating for 1 Second
Nominal Area Min No  of Wires In Ground at 20degC In Air at 30degC
Mm2 Nos. mm mm mm mm Kg/Km Kg Ohm/KM Ohm/KM Ohm/KM U fd/Km Amps Amps KA (rms)
35 6 6 1.6 1.4 29 880 660 0.868 1.11 0.147 0.15 123 157 3.29
50 6 6 1.6 1.56 31 980 760 0.641 0.8221 0.1458 0.165 144 183 4.7
70 12 6 1.6 1.56 32 1100 820 0.443 0.5682 0.1351 0.185 176 228 6.58
95 15 6 2 1.56 35 1340 940 0.32 0.4106 0.1298 0.21 210 278 8.93
120 15 6 2 1.56 37 1470 1235 0.253 0.3248 0.1247 0.226 238 320 11.3
150 15 6 2 1.56 38 1590 1295 0.206 0.2647 0.1211 0.24 269 366 14.1
185 30 6 2 1.56 40 1770 1385 0.164 0.211 0.1167 0.261 301 418 17.4
240 30 6 2 1.72 42 2050 1635 0.125 0.1612 0.1127 0.287 350 495 22.6
300 30 6 2 1.72 44 2310 1765 0.1 0.1295 0.1083 0.313 395 573 28.2
400 53 6 2 1.88 48 2710 2115 0.0778 0.1014 0.105 0.348 452 677 37.6
500 53 6 2.5 2.04 53 3370 2695 0.0605 0.0798 0.1025 0.388 514 779 47
630 53 6 2.5 2.04 57 3990 3005 0.0469 0.063 0.0995 0.44 586 910 59.22
800 53 6 2.5 2.2 62 4880 3630 0.0367 0.0501 0.0953 0.503 664 1071 75.2
1000 53 6 2.5 2.36 66 5590 3985 0.0291 0.0422 0.926 0.554 737 1216 94

XLPE cables are built for dependable power distribution, combining insulation strength with long service life under demanding load conditions.
XLPE Cables, Relemac product insight
