Telecommunication Cables
Relemac Technologies Pvt. Ltd is the name to reckon with if you are looking for high performance Telecom Telephone Cable Manufacturers in India. The wide range of Telecommunication Cables that we deal in comprises PCM cable, Telephone Cable, Information Wires, etc. We are well-known Manufacturer of Telecom Cabling & Telecommunication Cables from India and make available the cables in different types.
Annealed bare/tinned high conductivity copper. PVC/PE/Cellular PE insulated. Insulated cores twisted to form a pair. Pairs laid up in sub-units/units in concentric layers. Taped. Overall PVC sheathed. Individual and or overall shielding with Aluminium-Mylar tape/copper tape/lapping/braiding provided depending upon the requirement. Armouring provided with an extruded inner PVC/PE sheath and overall sheath of PVC/PE wherever required.
Applications
• For telephone switching Exchanges
• Switch
board & telephone wiring ( MDF, SDH, DWDM, DSLAM etc., )
•
Pulse code modulation systems
• RS-232 Communication
Systems
• Digital Transmission networks
Telecommunication Cable
Standard Specification :
DOT (GWIR 06/02) / C-DOT/ VDE:0815, 0816 /IEc:189 / IS:5608
Customer Standards like Alcatel, Siemens, Lucent, Fujitsu etc.,
Characteristics :
· Suitable for operation at voltage of 250 Volts.
· Cable suitable for conductor operating temperature 70 o
C, 85 o C & 105 o C shall be provided on request.
· UL approved cables available in CMP, CMR & CMX
types
Delivery Lengths : 250-500-1000 meters. Other lengths upon request
Special Properties :
Fire Retardant/Fire Retardant Low Smoke/Zero Halogen Low Smoke
& Sheath material shall be supplied on request.

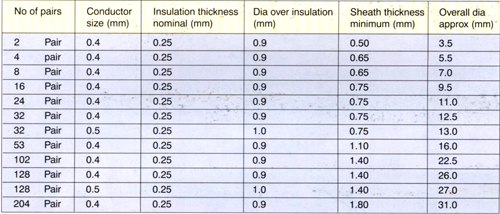

Technical Data Sheet

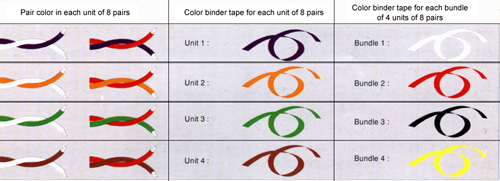

Identification
